01
4-Level Protection
Reinforced construction designed for demanding photovoltaic environments.
Electrical Wire

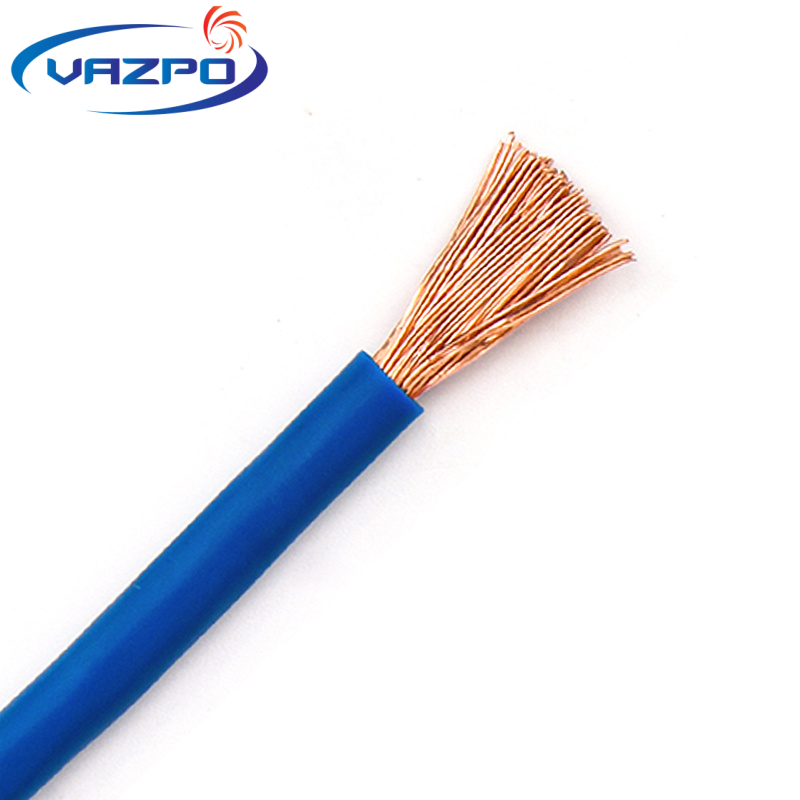

Multi Strand Flexible Single Core Electrical Cables
*99.99% oxygen-free copper conductors are used to ensure excellent conductivity.
*Flame-retardant polyvinyl chloride (PVC) insulation materials are used to enhance the safety of wires.
*With good wear and corrosion resistance, it is suitable for long-term use in various environments.
*Soft structure design, small conductor bending radius, easy installation, suitable for humid and oily installation sites.
*Quote Online Now, Contact Us, Free Samples Available.
FOR PROJECTS / BULK ORDERSBulk Inquiry
Submit product, specification and quantity for review before payment.
Product Advantages
Built for Reliable PV Performance
Key product advantages are presented in a concise format for engineers, distributors and project buyers.
02
14 Extreme Tests
Performance verification information can be reviewed together with the related technical documentation.
03
Fully Certified
TÜV, CE, RoHS and REACH compliance information presented in one place.
04
Harsh-Environment Stability
Positioning focused on durability, safety and long-term project reliability.
Technical Specification
Product Specifications
Original product application, structure, features and technical data.
Application
Electrical wire is suitable for fixed installation and is widely used in the internal connection of electrical equipment, electric control cabinets, distribution boxes and wiring of various low-voltage electrical equipment. It can provide reliable transmission for power transmission, electrical control signals and switch signals to ensure the normal operation of the equipment. In addition, the wire has good flexibility and is easy to install. It is especially suitable for places where frequent bending is required or wiring space is limited. The rated voltage is 450/750V, which is suitable for power distribution, telecommunication systems and mechanical equipment in residential and industrial environments, ensuring optimal performance and safety in different application scenarios.
Structure
Conductor: 99.97% oxygen-free copper
Insulation: PVC (polyvinyl chloride)/low smoke free (optional)

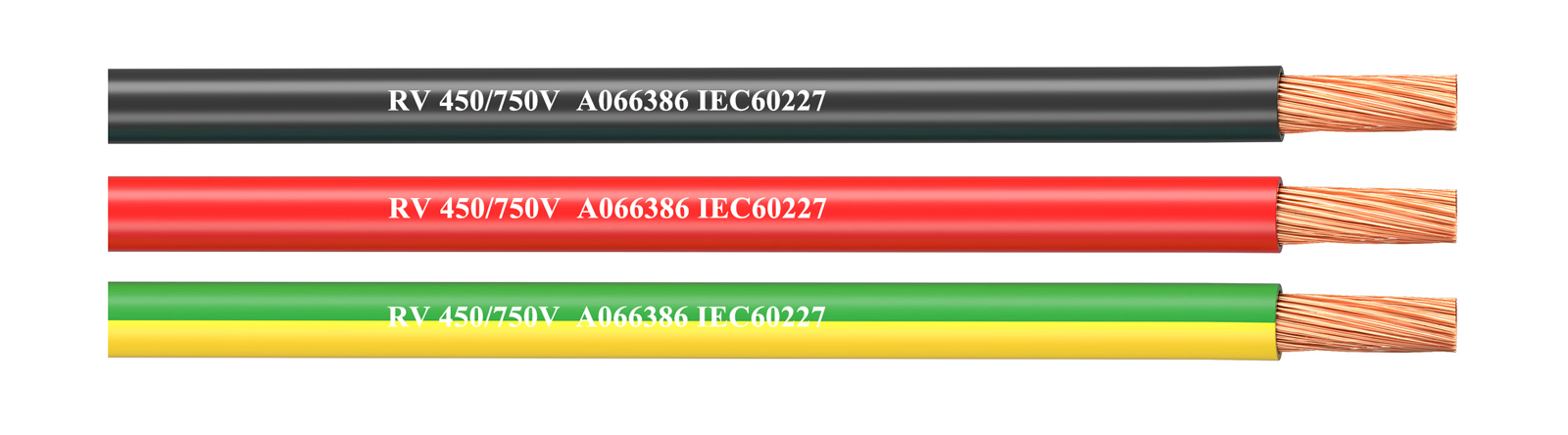

Color: black/red/blue/green/yellow/double color (yellow-green)
Features
1. Production standard: IEC60227
2. Certification: CCC, CQC
3. Rated voltage: Uo/U is 450/750V, 300/500, 300/300V
4. Long-term allowable temperature: The allowable operating temperature of -105 model cable should not exceed 105℃; the allowable operating temperature of other models should not exceed 70℃.
5. Flame retardancy: IEC60332-1
6. Insulation resistance: 10MΩ×km
Specification
|
Model |
Factory Model |
Voltage level |
Product Name |
|
H07V-U |
BV |
450/750V |
Copper core PVC insulated cable |
|
H05V-U |
BV |
300/500V |
Copper core PVC insulated cable |
|
H05V-R |
BVR |
300/500V |
Copper core PVC insulated flexible cable |
|
H07V-R |
BVR |
450/750V |
Copper core PVC insulated flexible cable |
|
H07V-K |
RV |
450/750V |
Copper core PVC insulated PVC sheathed flat cable |
|
H05V-K |
RV |
300/500V |
Copper core PVC insulated flexible cable |
|
H05VV-F |
RVV |
300/500V |
Copper core PVC insulated PVC sheathed flexible round cable |
|
H03VV-F |
RVV |
300/300V |
Copper core PVC insulated PVC sheathed flexible round cable |
|
H05VVH2-F |
RVVB |
450/750V |
Copper core PVC insulated PVC sheathed flexible connection flat cable |
|
H03VVH2-F |
RVVB |
300/300V |
Copper core PVC insulated PVC sheathed flexible connection flat cable |
|
H05V-K |
RVS |
450/750V |
Copper core PVC insulated twisted flexible connection cable |
|
H05V-K |
RVB |
300/300V |
Copper core PVC insulated flexible flat cable for connection |
|
H05VV-F |
RVVP |
300/300V |
Copper core PVC insulated shielded flexible cable |
Multi Strand Flexible Single Core Electrical Cables
| No. Cross-section of conductor | Rated voltage | Conductor structure | Insulation thickness | Upper Limit of O.D | Reference weight of cable | Max. D.C resistance of conductor at 20 ℃ | Min. insulation resistance at 70℃ | Approx. ampacity | |
| Average | Thinnest | ||||||||
| mm2 | V | N/mm | mm | mm | mm | kg/km | Ω /km | MΩ /km | A |
| 0.5 | 300/500 | 28/0.15 | 0.6 | 0.44 | 2.6 | 9 | 39 | 0.013 | 13.3 |
| 0.75 | 300/500 | 42/0.15 | 0.6 | 0.44 | 2.8 | 12.2 | 26 | 0.011 | 17 |
| 1 | 300/500 | 32/0.20 | 0.6 | 0.44 | 3 | 14.8 | 19.5 | 0.01 | 20 |
| 1.5 | 450/750 | 48/0.20 | 0.7 | 0.53 | 3.5 | 22 | 13.3 | 0.01 | 25.4 |
| 2.5 | 450/750 | 77/0.20 | 0.8 | 0.62 | 4.2 | 34 | 7.98 | 0.009 | 34.5 |
| 4 | 450/750 | 77/0.26 | 0.8 | 0.62 | 4.8 | 51 | 4.95 | 0.007 | 44.5 |
| 6 | 450/750 | 84/0.30 | 0.8 | 0.62 | 6.3 | 75 | 3.3 | 0.006 | 58.3 |
| 10 | 450/750 | 84/0.40 | 1 | 0.8 | 7.6 | 131 | 1.91 | 0.0056 | 79.5 |
| 16 | 450/750 | 126/0.40 | 1 | 0.8 | 8.8 | 186 | 1.21 | 0.0046 | 111 |
| 25 | 450/750 | 196/0.40 | 1.2 | 0.98 | 11 | 285 | 0.78 | 0.0044 | 146 |
| 35 | 450/750 | 276/0.40 | 1.2 | 0.98 | 12.5 | 392 | 0.554 | 0.0038 | 180 |
| 50 | 450/750 | 396/0.40 | 1.4 | 1.16 | 14.5 | 544 | 0.386 | 0.0037 | 225 |
| 70 | 450/750 | 360/0.50 | 1.4 | 1.16 | 17 | 755 | 0.272 | 0.0032 | 280 |
