01
4-Level Protection
Reinforced construction designed for demanding photovoltaic environments.
Electrical Wire

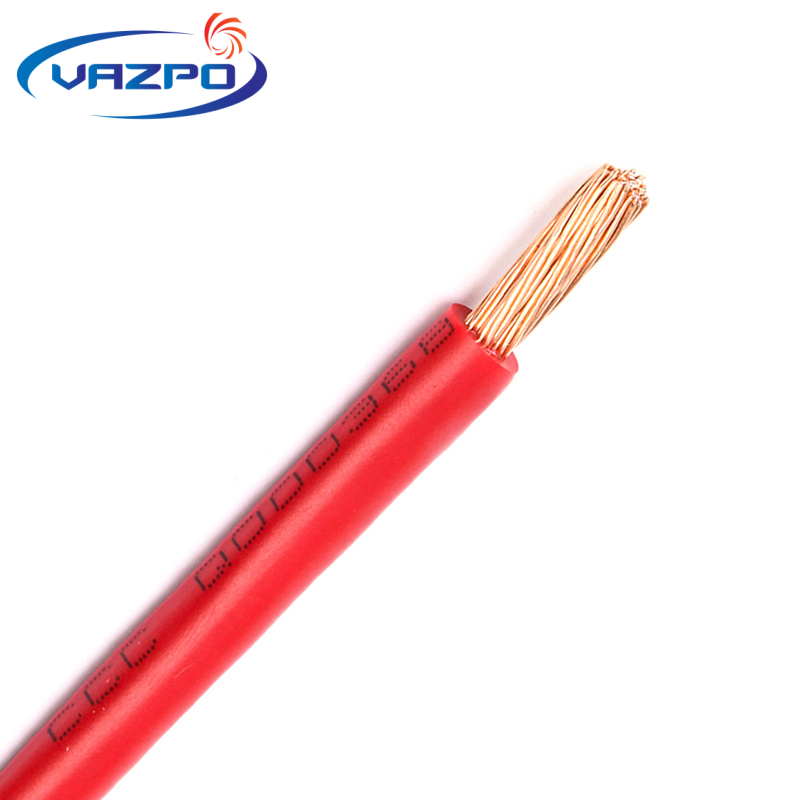

Housing Wiring Copper Stranded Electrical Wire
*High-grade copper cores deliver exceptional electrical conductivity and reliability.
*Engineered to resist wear, aging, and corrosion, ensuring extended service life.
*The stranded structure allows for easy handling and installation in various applications.
*All materials meet stringent environmental standards, free from harmful substances.
*Quote Online Now, Contact Us, Free Samples Available.
FOR PROJECTS / BULK ORDERSBulk Inquiry
Submit product, specification and quantity for review before payment.
Product Advantages
Built for Reliable PV Performance
Key product advantages are presented in a concise format for engineers, distributors and project buyers.
02
14 Extreme Tests
Performance verification information can be reviewed together with the related technical documentation.
03
Fully Certified
TÜV, CE, RoHS and REACH compliance information presented in one place.
04
Harsh-Environment Stability
Positioning focused on durability, safety and long-term project reliability.
Technical Specification
Product Specifications
Original product application, structure, features and technical data.
Application
Electrical wire is widely used in fixed installations and is suitable for electrical equipment, control systems, telecommunication equipment, and power and lighting circuits. It has a rated voltage of 450/750V and is suitable for use in residential, commercial and industrial environments, providing stable and safe electrical connections. This wire is widely used in power distribution, equipment connection, automation control and communication systems, and can provide efficient power and signal transmission in a variety of complex applications. In addition, it plays an important role in power plants, construction, urban infrastructure, smart home systems, and power transmission systems in transportation.
Structure
Conductor: 99.97% oxygen-free copper
Insulation: PVC (polyvinyl chloride)/low smoke free (optional)

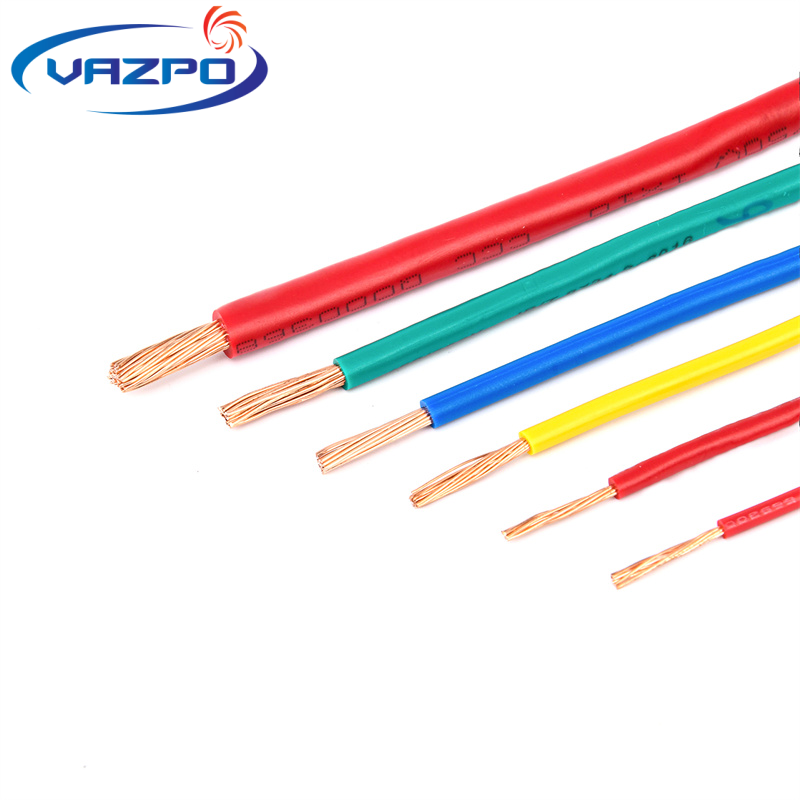

Color: black/red/blue/green/yellow/double color (yellow-green)
Features
1. Production standard: IEC60227
2. Certification: CCC, CQC
3. Rated voltage: Uo/U is 450/750V, 300/500, 300/300V
4. Long-term allowable temperature: The allowable operating temperature of -105 model cable should not exceed 105℃; the allowable operating temperature of other models should not exceed 70℃.
5. Flame retardancy: IEC60332-1
6. Insulation resistance: 10MΩ×km
Specification
|
Model |
Factory Model |
Voltage level |
Product Name |
|
H07V-U |
BV |
450/750V |
Copper core PVC insulated cable |
|
H05V-U |
BV |
300/500V |
Copper core PVC insulated cable |
|

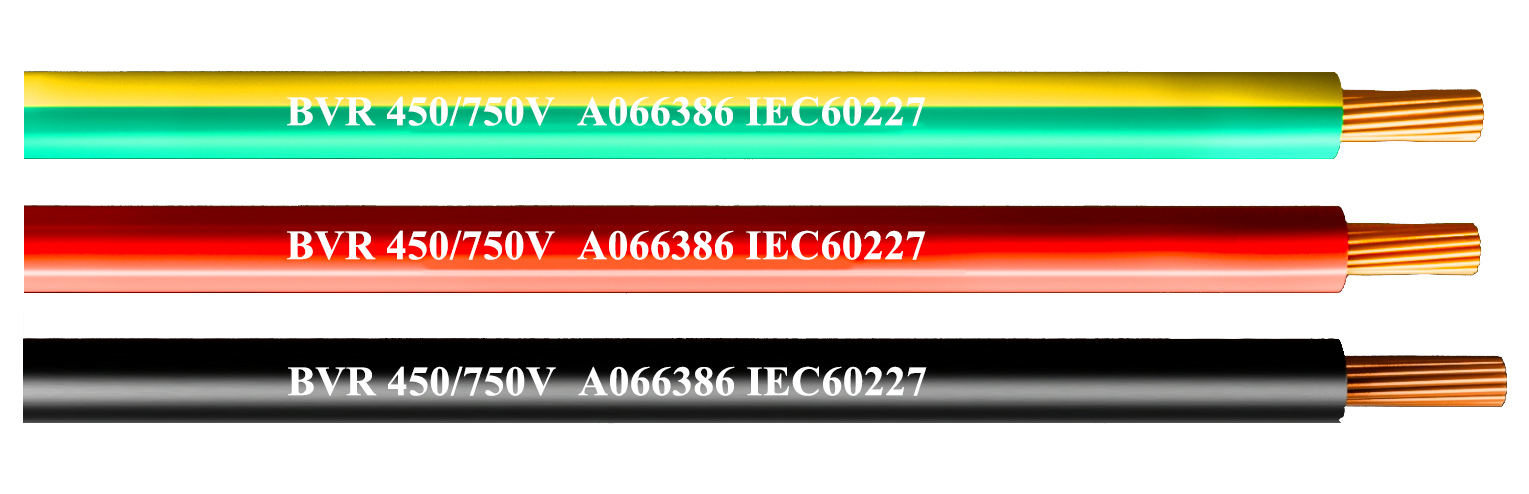

H05V-R |
BVR |
300/500V |
Copper core PVC insulated flexible cable |
|
H07V-R |
BVR |
450/750V |
Copper core PVC insulated flexible cable |
|
H07V-K |
RV |
450/750V |
Copper core PVC insulated PVC sheathed flat cable |
|
H05V-K |
RV |
300/500V |
Copper core PVC insulated flexible cable |
|
H05VV-F |
RVV |
300/500V |
Copper core PVC insulated PVC sheathed flexible round cable |
|
H03VV-F |
RVV |
300/300V |
Copper core PVC insulated PVC sheathed flexible round cable |
|
H05VVH2-F |
RVVB |
450/750V |
Copper core PVC insulated PVC sheathed flexible connection flat cable |
|
H03VVH2-F |
RVVB |
300/300V |
Copper core PVC insulated PVC sheathed flexible connection flat cable |
|
H05V-K |
RVS |
450/750V |
Copper core PVC insulated twisted flexible connection cable |
|
H05V-K |
RVB |
300/300V |
Copper core PVC insulated flexible flat cable for connection |
|
H05VV-F |
RVVP |
300/300V |
Copper core PVC insulated shielded flexible cable |
Housing Wiring Copper Stranded Electrical Wire
| No. Cross-section of conductor | Rated voltage | Conductor structure | Insulation thickness | Upper Limit of O.D | Reference weight of cable | Max. D.C resistance of conductor at 20 ℃ | Min. insulation resistance at 70℃ | Approx. ampacity | |
| Average | Thinnest | ||||||||
| mm2 | V | N/mm | mm | mm | mm | kg/km | Ω /km | MΩ /km | A |
| 2.5 | 450/750 | 19/0.41 | 0.8 | 0.62 | 4.1 | 34 | 7.41 | 0.11 | 34 |
| 4 | 450/750 | 19/0.52 | 0.8 | 0.62 | 4.8 | 51 | 4.61 | 0.009 | 44 |
| 6 | 450/750 | 19/0.64 | 0.8 | 0.62 | 5.3 | 72 | 3.08 | 0.0084 | 58 |
| 10 | 450/750 | 49/0.52 | 1.0 | 0.80 | 6.8 | 128 | 1.83 | 0.0072 | 79 |
| 16 | 450/750 | 49/0.64 | 1.0 | 0.80 | 8.1 | 188 | 1.15 | 0.0062 | 111 |
| 25 | 450/750 | 98/0.58 | 1.2 | 0.98 | 10.2 | 305 | 0.727 | 0.0058 | 146 |
| 35 | 450/750 | 133/0.58 | 1.2 | 0.98 | 11.7 | 402 | 0.524 | 0.0052 | 180 |
| 50 | 450/750 | 133/0.68 | 1.4 | 1.16 | 13.9 | 552 | 0.387 | 0.0051 | 228 |
| 70 | 450/750 | 189/0.68 | 1.4 | 1.16 | 16 | 743 | 0.268 | 0.0045 | 281 |
