Technical Specification
Product Specifications
Original product application, structure, features and technical data.
Application
This product is suitable for AC rated voltage U/U450/750V and the following power, lighting, daily appliances, instruments and telecommunication equipment, the requirements of high mechanical protection, humidity and other occasions can be open or dark laying.

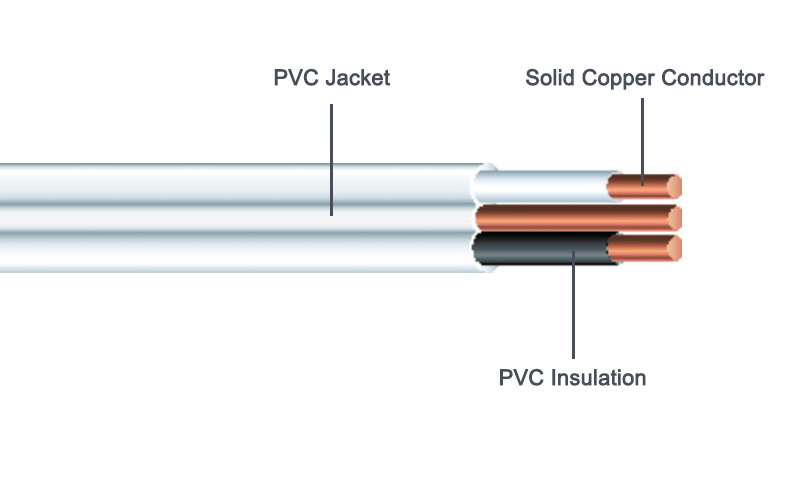

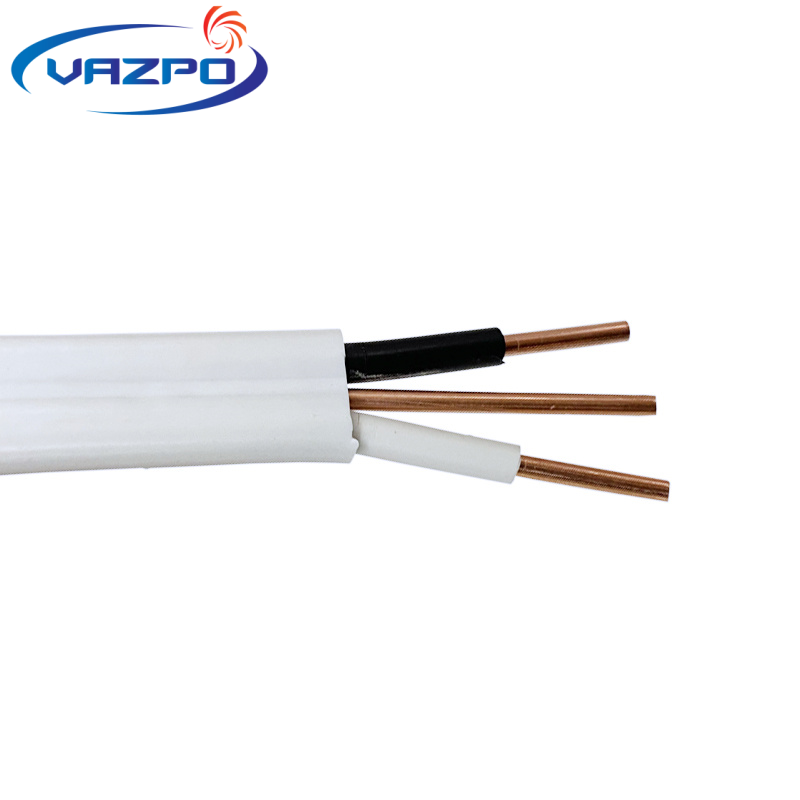

Structure
Conductor: 99.97% oxygen-free copper
Insulation: PVC (polyvinyl chloride)/low smoke free (optional)
Sheath: PVC (polyvinyl chloride)/low smoke free (optional)
Insulation Color: Red and black
Sheath (Jacket) Color: White/Black/Grey
Features
1. Production standard: IEC60227
2. Certification: CCC, CQC
3. Rated voltage: 300/300V – 450/750V
4. Temperature Rating: -15°C to +70°C
Should not be installed at temperatures below 0°C or above +60°C.
Physical Properties
1. Elongation of unaged values：≥190%
2. bending radiu：≥10D
3. Tensile strength of unaged values : ≥15.7N/mm2
Specification
|
Model |
Factory Model |
Voltage level |
Product Name |
|
H07V-U |
BV |
450/750V |
Copper core PVC insulated cable |
|
H05V-U |
BV |
300/500V |
Copper core PVC insulated cable |
|
H05V-R |
BVR |
300/500V |
Copper core PVC insulated flexible cable |
|
H07V-R |
BVR |
450/750V |
Copper core PVC insulated flexible cable |
|
H07V-K |
RV |
450/750V |
Copper core PVC insulated PVC sheathed flat cable |
|
H05V-K |
RV |
300/500V |
Copper core PVC insulated flexible cable |
|
H05VV-F |
RVV |
300/500V |
Copper core PVC insulated PVC sheathed flexible round cable |
|
H03VV-F |
RVV |
300/300V |
Copper core PVC insulated PVC sheathed flexible round cable |
|
H05VVH2-F |
RVVB |
450/750V |
Copper core PVC insulated PVC sheathed flexible connection flat cable |
|
H03VVH2-F |
RVVB |
300/300V |
Copper core PVC insulated PVC sheathed flexible connection flat cable |
|
H05V-K |
RVS |
450/750V |
Copper core PVC insulated twisted flexible connection cable |
|
H05V-K |
RVB |
300/300V |
Copper core PVC insulated flexible flat cable for connection |
|
H05VV-F |
RVVP |
300/300V |
Copper core PVC insulated shielded flexible cable |
Flat Twin and Earthed Electrical Wire
|
Nominal Cross Section (mm2) |
Class of Conductor |
Conductor |
Insulation |
Max Overall Diameter |
Mass of wire |
Maximum Conductor Resistance at 20℃ |
Min. Insulation Resistance at 70℃ 20℃ |
|
1.0 |
1 |
1/1.13 |
0.6 |
2.7 |
15 |
18.1 |
0.013 |
|
1.5 |
1 |
1/1.38 |
0.7 |
3.2 |
21 |
12.1 |
0.011 |
|
1.5 |
2 |
7/0.53 |
0.7 |
3.3 |
22 |
12.1 |
0.01 |
|
2.5 |
1 |
1/1.78 |
0.8 |
3.9 |
32 |
7.41 |
0.01 |
|
2.5 |
2 |
7/0.67 |
0.8 |
4.0 |
35 |
7.41 |
0.009 |
|
4 |
2 |
1/2.23 |
0.8 |
4.4 |
50 |
4.61 |
0.0077 |
|
6 |
2 |
1/2.74 |
0.8 |
5.0 |
71 |
3.08 |
0.0065 |
|
10 |
2 |
7/1.35 |
1.0 |
6.7 |
120 |
1.83 |
0.0065 |
|
16 |
2 |
7/1.7 |
1.0 |
7.8 |
180 |
1.15 |
0.005 |
|
25 |
2 |
7/2.14 |
1.2 |
9.7 |
280 |
0.727 |
0.005 |
|
35 |
2 |
19/1.53 |
1.2 |
10.9 |
368 |
0.524 |
0.0043 |
|
50 |
2 |
19/1.78 1988 |
1.4 |
12.8 |
510 |
0.387 |
0.0043 |
|
70 |
2 |
19/2.14 |
1.4 |
14.6 |
710 |
0.268 |
0.0035 |
|
95 |
2 |
19/2.53 |
1.6 |
17.1 |
970 |
0.193 |
0.0035 |
|
120 |
2 |
37/2.03 |
1.6 |
18.8 |
1200 |
0.153 |
0.0032 |
|
150 |
2 |
37/2.25 |
1.8 |
20.9 |
1480 |
0.124 |
0.0032 |
|
185 |
2 |
37/2.52 |
2.0 |
23.3 |
1852 |
0.0991 |
0.0032 |
|
240 |
2 |
61/2.25 |
2.2 |
26.6 |
2415 |
0.0754 |
0.0032 |
|
300 |
2 |
61/2.52 |
2.4 |
29.6 |
3026 |
0.0601 |
0.003 |
|
400 |
2 |
61/2.85 |
2.6 |
33.2 |
3852 |
0.047 |
0.0028 |
